VFSPP
Chimp
The CHIMP Pool Pump Series Permanent Magnet Motor is our specially developed product for swimming pool applications. This series features high efficiency, high power density, variable speed control, and intelligent operation. We have also developed comprehensive control functions for pool pumps, enabling manual mode, scheduled automatic operation, automatic exhaust, power-off protection, and more. Equipped with WiFi/Bluetooth + APP intelligent mode, it supports remote monitoring and smartphone parameter configuration.
Energy Saving – High-efficiency IE5 permanent magnet motor combined with stable variable frequency drive technology.
Enhanced Safety & Reliability – Multiple automatic protections including dry-run (no water), over-voltage, under-voltage, and over-temperature.
Superior Outdoor Protection – Waterproof cover on the LED touch screen for reliable outdoor performance.
Smart APP Control – Full smartphone connectivity and remote monitoring.
WiFi + Bluetooth – Seamless wireless connection for easy setup and control.
High Power Factor PFC Design – Ensures maximum energy efficiency and stable operation.
Universal Voltage System – 115V/230V interchangeable, delivering constant power without rewiring the main supply.
Built-in Programmable Clock – Easy scheduling and automated operation with real-time clock.

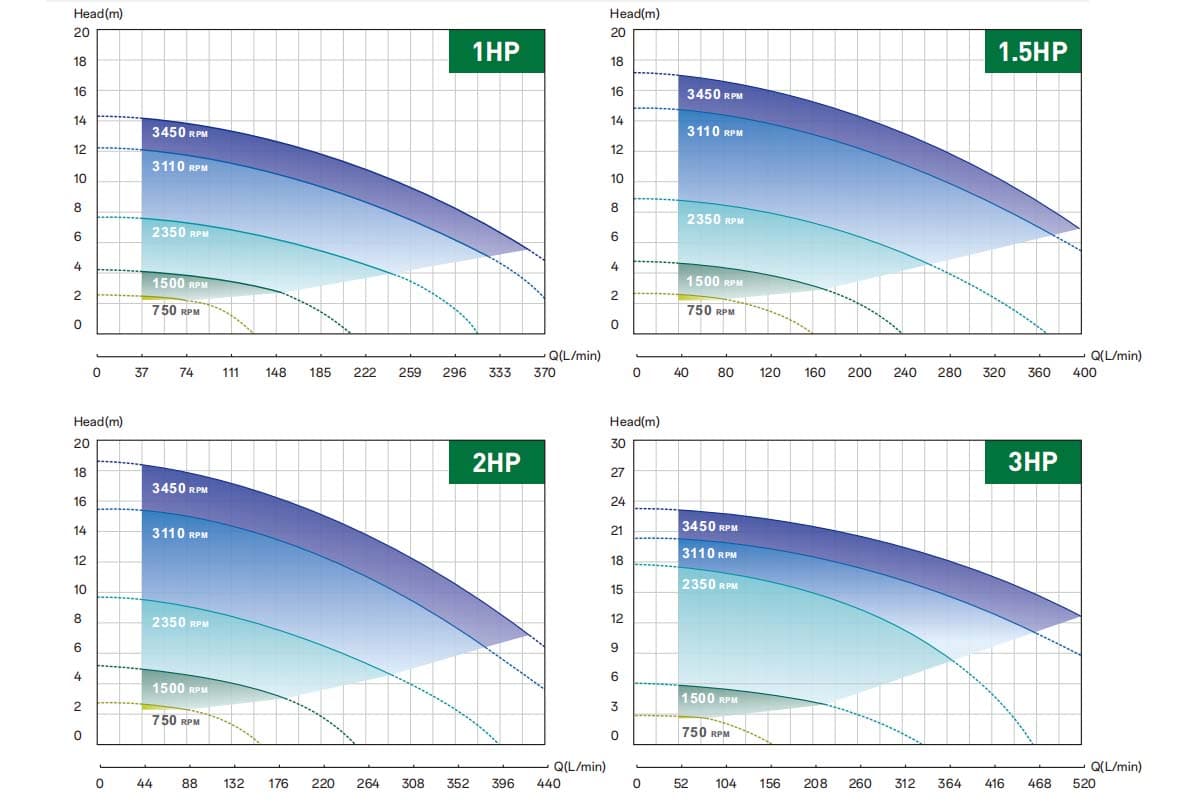

| Model | Output power（HP） | Output power (KW) | Speed (RPM) | Motor Efficiency (%) | Outlet (mm) | Input Voltage（VAC50/60HZ) |
| VFSPP-1000 | 1 | 0.75 | 600-3450 | 90 | 40-50-63 | 208-240 |
| VFSPP-1500 | 1.5 | 1.1 | 600-3450 | 90.5 | 40-50-63 | 208-240 |
| VFSPP-2000 | 2 | 1.5 | 600-3450 | 90.5 | 40-50-63 | 208-240 |
| VFSPP-3000 | 3 | 2.2 | 600-3450 | 90.5 | 40-50-63 | 208-240 |
Suitable for all kinds of household and commercial swimming pools, hot springs, landscape baths, complete pool equipment, Jacuzzis, countercurrent propellers, and other environments that require filtration.
