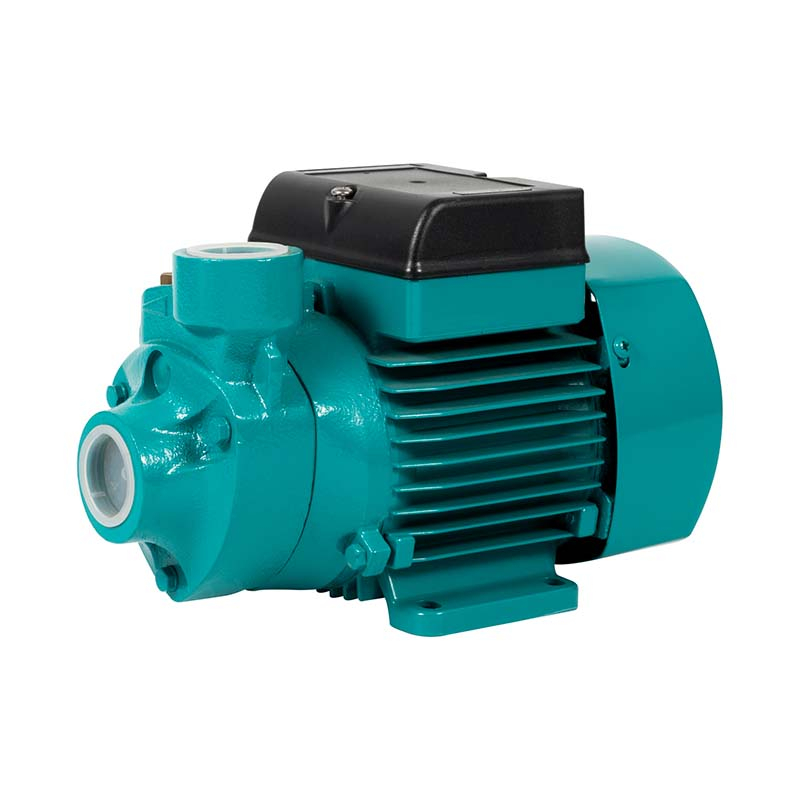

Vortex Pump
Brass impeller
304 s.s inert
304 s.S mechanical seal
Cast iron pump body and support be electrophoresis
Suction: 8M
Liquid: clean water,≤50°C
Liquid PH value: 6.5-8.5
Copper wire
With thermal protector
304 s.s shaft
Insulation class: B
IPX4
Ambient temperature: up to +40°C
Liquid temperature: up to +40°C
Max.Working pressure: 6 bar
It can be used to transfer clean water or other liquid similar to water in physical and chemical properties. It is suitable for small living water supply, automatic water sprinkler system, small air conditioner system and supporting equipment etc.
MODEL | POWER | MAX.FLOW | MAX.HEAD | MAX.SUCT | INLET/OUTLET | GW | PACKING | |
kW | HP | |||||||
CHQB60 | 0.37 | 0.5 | 35 | 35 | 8 | 1''×1'' | 5.3 | 265×130×160 |
CHQB70 | 0.55 | 0.75 | 42 | 50 | 8 | 1''×1'' | 8.5 | 340×180×205 |
CHQB80 | 0.75 | 1 | 50 | 60 | 8 | 1''×1'' | 9.5 | 340×180×205 |
