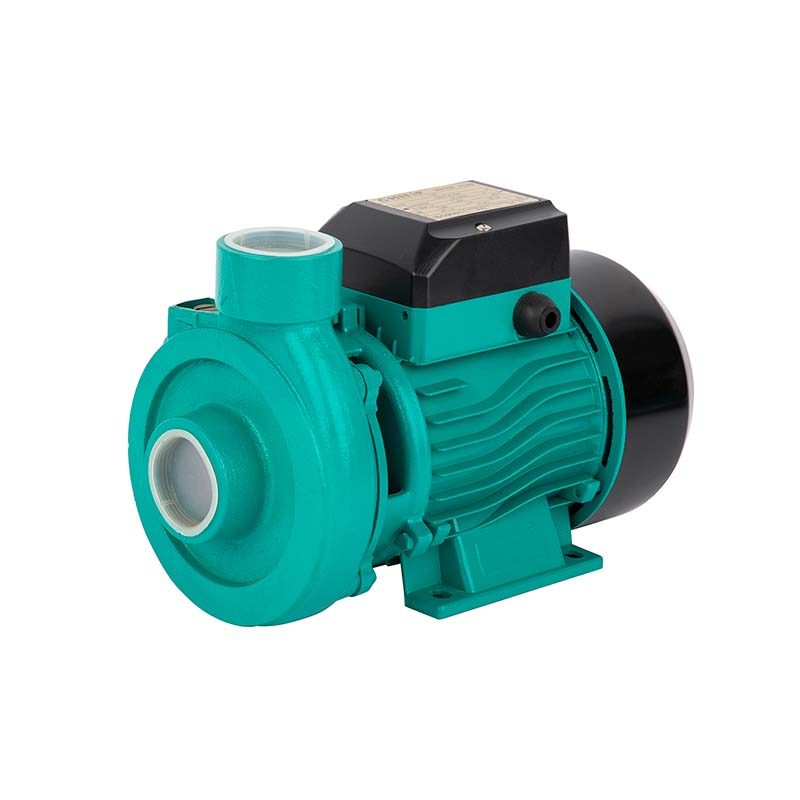

1DK

Cast iron pump body and support
Brass impeller or Stainless steel impeller
Max.liquid temperature:+40℃
Max. Suction:+8m

Motor with copper winding
Shaft: Stainless steel welded shaft/45# steel shaft
Insulation Class:B or F
Protection class: IPX4
Max.Ambient temperature:+40℃
Cooling: External ventilation




It can be used to transfer clean water or other liquid similar towater in physical and chemical properties. It is suitable for indus-trial use and urban water supply, pressure boosting for highbuildings and fire fighting, garden irrigation, long-distancewater transfer, heating ventilation and air controlling, circulationand pressure boosting for cold and hot water, and supportingequipment, etc.
