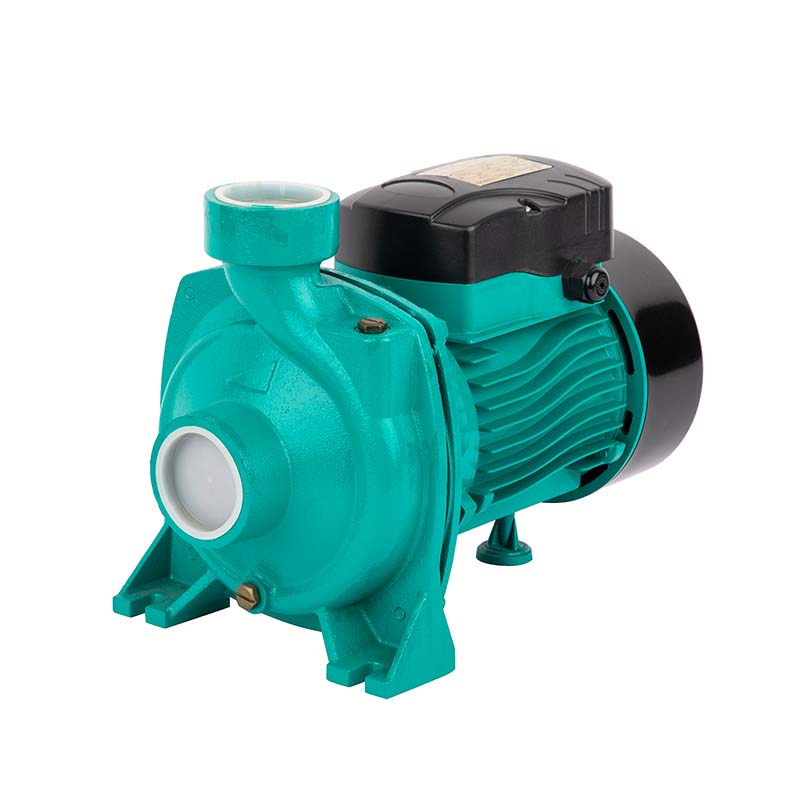

MHF5AM
Cast iron pump body
Stainless steel or Brass impeller
Max.liquid temperature:+40 ℃
Max. Suction:+8m
Motor with copper winding
Shaft: Stainless steel welded shaft/45# steel shaft
Insulation Class: B or F
Protection class: IPX4
Max.Ambient temperature: +40℃
Cooling: External ventilation

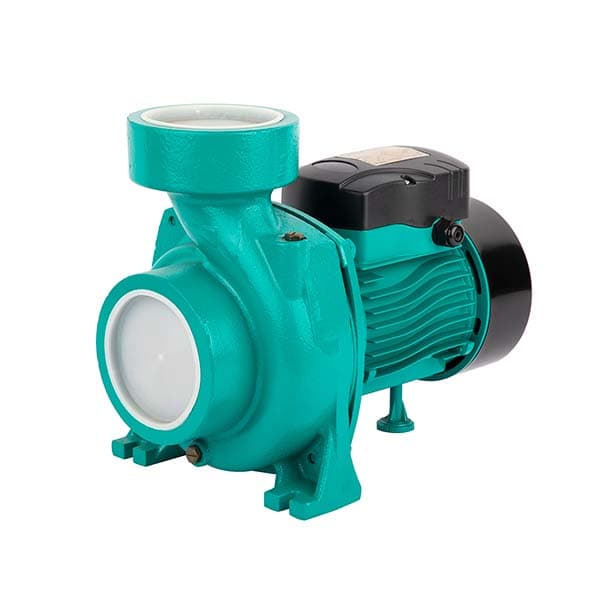

The MHF centrifugal pump is engineered for reliable, energy-efficient operation in demanding civilian and agricultural environments. Delivering high flow rates with low to medium head pressure, it’s the ideal choice for flood irrigation, sprinkler systems, garden watering, livestock water supply, and extracting water from lakes, rivers, reservoirs, or wells.
This versatile pump also meets the needs of light industrial applications requiring steady, high-volume water transfer, such as cooling systems, drainage, and water circulation.
Cast iron pump body
Stainless steel or Brass impeller
Max.liquid temperature:+40 ℃
Max. Suction:+8m
Motor with copper winding
Shaft: Stainless steel welded shaft/45# steel shaft
Insulation Class: B or F
Protection class: IPX4
Max.Ambient temperature: +40℃
Cooling: External ventilation
The MHF centrifugal pump is engineered for reliable, energy-efficient operation in demanding civilian and agricultural environments. Delivering high flow rates with low to medium head pressure, it’s the ideal choice for flood irrigation, sprinkler systems, garden watering, livestock water supply, and extracting water from lakes, rivers, reservoirs, or wells.
This versatile pump also meets the needs of light industrial applications requiring steady, high-volume water transfer, such as cooling systems, drainage, and water circulation.
