A surface pump that suddenly refuses to start does not always mean the motor is damaged.
In our daily after-sales work at Chimp Pump, one problem we occasionally see is quite simple: the motor has power, but the impeller or rotor cannot rotate freely. In this case, the pump may hum, fail to start, or appear completely stuck.
For a vortex pump, this can happen after long storage, transportation, dirt entering the pump chamber, or when internal parts become too tight.
Before replacing the motor or capacitor, it is worth checking whether the impeller is stuck first.
Safety first: Disconnect the pump from the power supply completely before opening the fan cover or pump body.

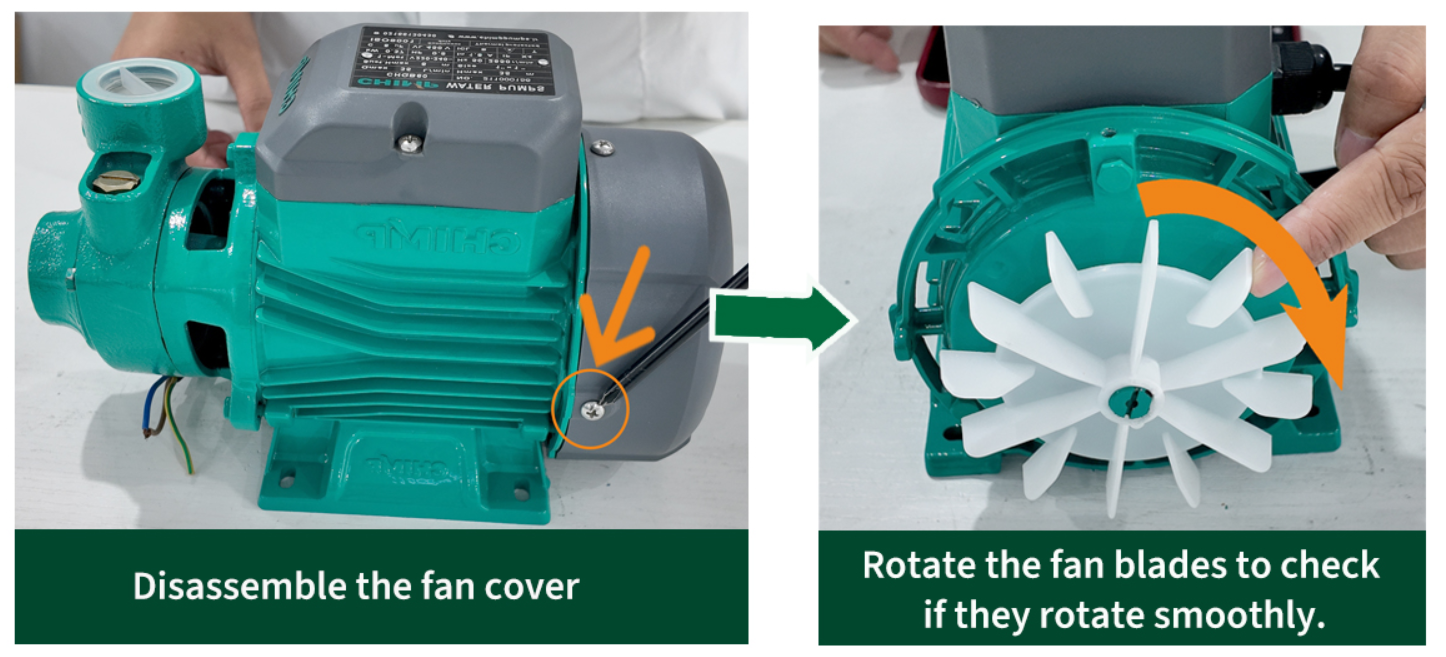

The first check is also the easiest.
Remove the rear fan cover of the vortex pump, then slowly rotate the cooling fan by hand.
Try to turn it through a full 360 degrees.
If the fan rotates smoothly, the rotor and impeller are probably not mechanically locked. In that case, the problem may come from another area such as low voltage, a damaged cable, capacitor failure or the motor winding.
If the fan cannot rotate, or feels obviously tight, continue with the next step.
Don’t force it too hard. We are checking the condition first, not trying to break the blockage by force.

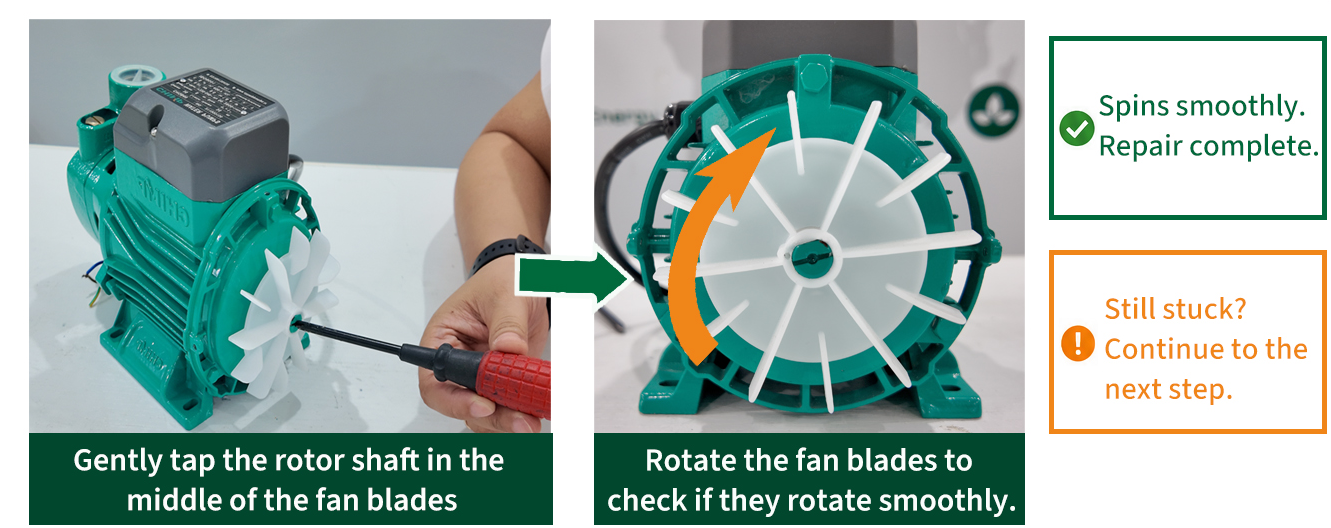

At the center of the cooling fan, you can see the end of the motor shaft.
Using a suitable tool, gently tap the rotor shaft and then try rotating the fan again.
Sometimes a surface pump that has been stored for a long period develops a small amount of sticking between rotating components. A light adjustment may release it.
After tapping, rotate the fan again.
If it now spins smoothly, the mechanical blockage has been released.
Still stuck? Then we need to check the pump side.

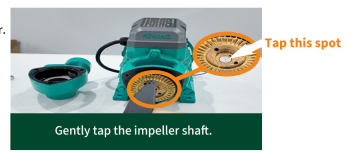

Remove the screws connecting the pump body to the motor and carefully separate the two parts.
On many small Chimp Pump vortex pump models, you can now see the brass impeller and the front end of the shaft.
Gently tap the shaft at the center of the impeller.
Again, the key word here is gently.
Excessive force may damage the shaft, impeller or mechanical seal, so this is not a job for heavy hammering.
After adjustment, check whether the shaft can rotate freely again.
At this stage, also look for obvious foreign material, rust, deformation or other parts that may be restricting the impeller.

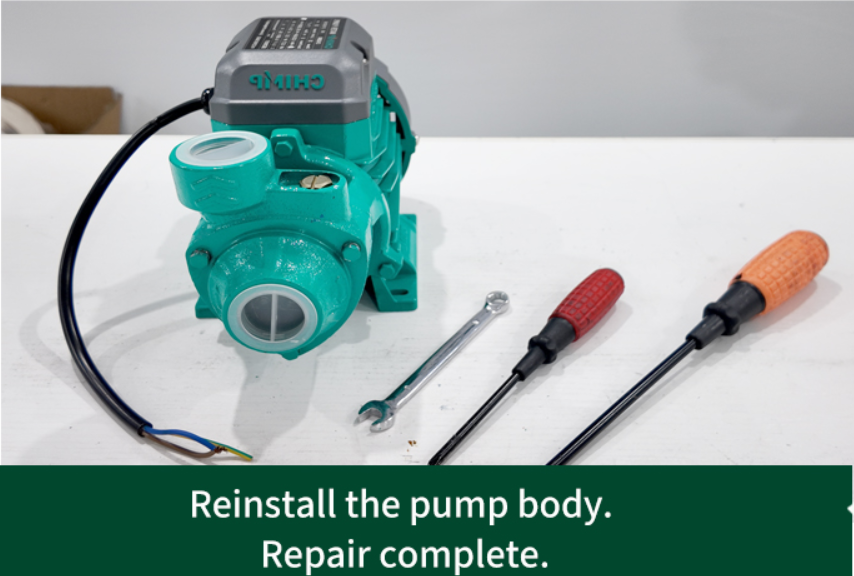

Before completing the repair, reinstall the pump body temporarily without the sealing gasket and rotate the rear fan by hand.
Does it rotate smoothly now?
If yes, reinstall the gasket correctly and assemble the pump body again.
Then rotate the fan one final time to make sure there is no abnormal resistance.
The mechanical repair is basically complete.
Only after everything has been properly reassembled should the pump be connected to power for a functional test.
A Stuck Impeller Is Only One Possible Cause
It is worth mentioning that an impeller blockage is not the only reason a surface pump won’t start.
Other common causes include:
- Supply voltage that is too low
- Damaged or poorly connected power cables
- Excessive voltage drop from undersized cables
- A failed capacitor
- Burned motor windings
So if the fan already rotates freely but the pump still cannot start, electrical inspection should be the next step rather than continuing to disassemble the pump.
For electrical faults, especially capacitor or winding problems, we recommend inspection by a qualified technician.
A Small Check Can Save a Lot of Time
When a pump stops working, replacing parts immediately is not always the best answer.
At Chimp Pump, we normally prefer to start with the simple things: check the rotation, locate where the resistance comes from, and then move deeper into the pump only when necessary.
For a small vortex pump, a stuck impeller can sometimes look like a serious motor failure, while the actual repair is much simpler.
If you are a distributor or water pump dealer and need technical support for our household surface pump range, feel free to contact the Chimp Pump team. We are always happy to help with troubleshooting, product selection and after-sales support.
