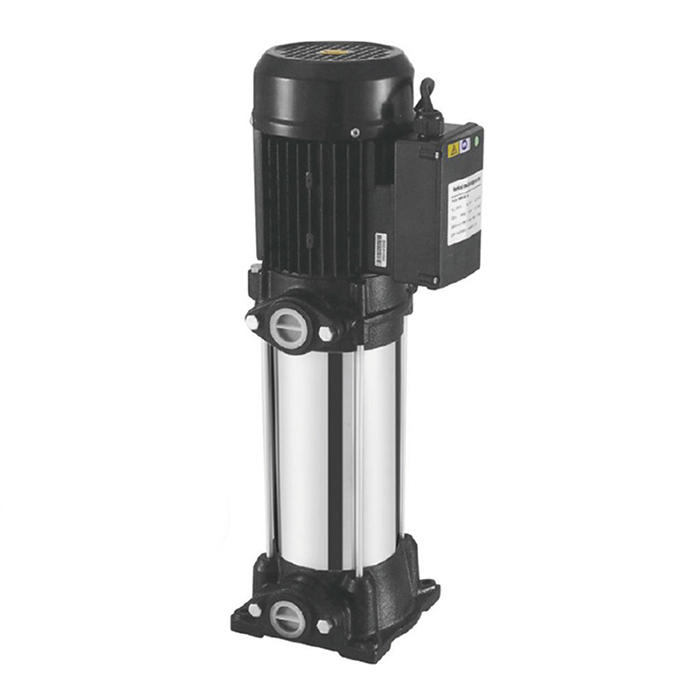

VM Vertical Multistage Centrifugal Pump

Power: 0.37kw to 3kw
Flow: 2m³/h to 12m³/h
Head: 18m to 51m

MOQ： 50pcs

Quantity:
Availability:





Inquire

Model:
VM

Product Description

chimp-pumps-pump

The outer cylinder of the vertical multistagle pump adopts the stainless steel material; the Impeller and the middle sectionadopt the high strength engineering plastic material, which are anti-corrosive and durable.Electric pump is with low noise GB motor, pump is with high-quality mechanical seal, stable performance.Attractive appearance, high efficiency and energy saving.Small size, high head, wide range of applications.

chimp-pumps-application

Water supply: water plant filtration and transmission, water plant district delivery. The main pipelinepressurization, high-rise building pressurization.
Industrial boosting: process water systems, cleaning systems, high pressure flushing systems, fireprotection systems.
Industrial liquid transportation: cooling water and air conditioning systems, boiler feed water andcondensation systems, machine tools, weak acid and weak alkaline liquid transmission.
Water treatment: ultra-filtration systems, reverse osmosis systems, distillation.systems, separators,swimming pools, etc.

chimp-pumps-operating-conditions

Max. Liquid temperature: +70℃ Max.
Ambient temperature: +50 ℃ Max.
Working pressure: 1.0MPa
When the density or viscosity of medium is greater than the water, should beconsidered the motor with more high power should be consiclered

chimp-pumps-parameter

MODEL	RATED POWER (kW)	RATED FLOW (m3/h)	RATED HEAD (m)	ASYNCHRONOUS SPEED (r/min)	POWER SUPPLY (V/Hz)	INLET/OUTLET (mm)
(H)VM2-9×2(T)	0.37	2	18	3000	220/50 380/50	25×25
(H)VM2-9×3(T)	0.55	2	27	3000	220/50 380/50	25×25
(H)VM2-9×4(T)	0.75	2	36	3000	220/50 380/50	25×25
(H)VM2-9×5(T)	1	2	45	3000	220/50 380/50	25×25
(H)VM2-9×6(T)	1	2	54	3000	220/50 380/50	25×25
(H)VM2-9×7(T)	1.1	2	63	3000	220/50 380/50	25×25
(H)VM2-9×8(T)	1.5	2	72	3000	220/50 380/50	25×25
(H)VM2-9×9(T)	1.5	2	81	3000	220/50 380/50	25×25
(H)VM4-9×2(T)	0.55	4	18	3000	220/50 380/50	25×25
(H)VM4-9×3(T)	0.75	4	27	3000	220/50 380/50	25×25
(H)VM4-9×4(T)	1	4	36	3000	220/50 380/50	25×25
(H)VM4-9×5(T)	1.5	4	45	3000	220/50 380/50	25×25
(H)VM4-9×6(T)	1.5	4	54	3000	220/50 380/50	25×25
(H)VM4-9×7(T)	2.2	4	63	3000	220/50 380/50	25×25
(H)VM4-9×8(T)	2.2	4	72	3000	220/50 380/50	25×25
(H)VM6-8.5×3(T)	1.1	6	25	3000	220/50 380/50	32×32
(H)VM6-8.5×4(T)	1.5	6	34	3000	220/50 380/50	32×32
(H)VM6-8.5×5(T)	2.2	6	42	3000	220/50 380/50	32×32
(H)VM6-8.5×6(T)	2.2	6	51	3000	220/50 380/50	32×32
(H)VM6-8.5×7T	3	6	60	3000	380/50	32×32
(H)VM6-8.5×8T	3	6	68	3000	380/50	32×32
(H)VM8-9×2(T)	1.1	8	18	3000	220/50 380/50	40×32
(H)VM8-9×3(T)	1.1	8	27	3000	220/50 380/50	40×32
(H)VM8-9×4(T)	1.5	8	36	3000	220/50 380/50	40×32
(H)VM8-9×5(T)	2.2	8	45	3000	220/50 380/50	40×32
(H)VM8-9×6T	3	8	54	3000	380/50	40×32
(H)VM12-8.5×2(T)	1.1	12	17	3000	220/50 380/50	40×32
(H)VM12-8.5×3(T)	1.5	12	25	3000	220/50 380/50	40×32
(H)VM12-8.5×4(T)	2.2	12	34	3000	220/50 380/50	40×32
(H)VM12-8.5×5T	3	12	42	3000	380/50	40×32
(H)VM12-8.5×6T	3	12	51	3000	380/50	40×32
