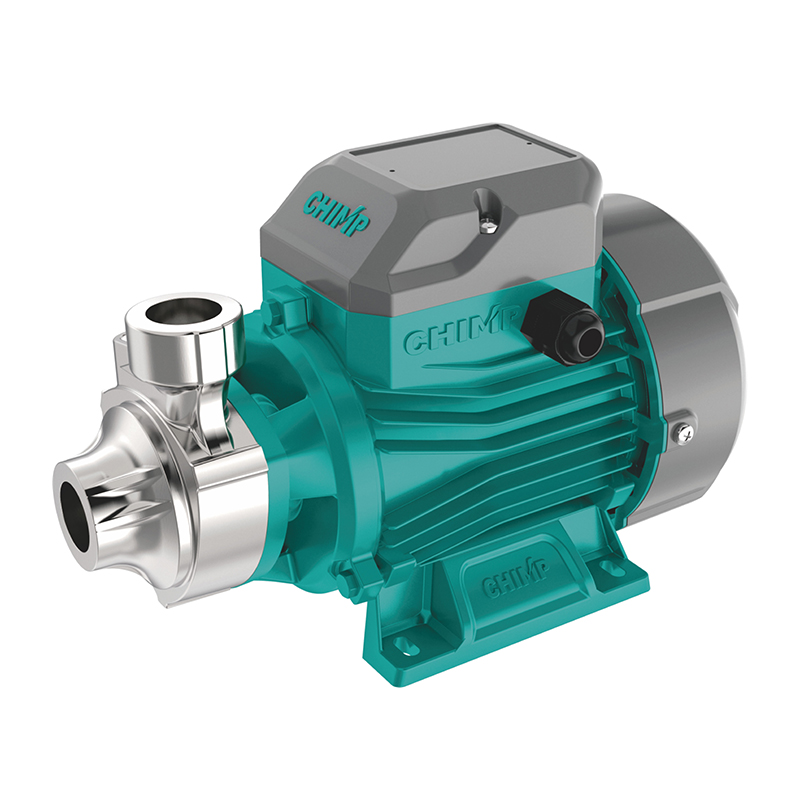

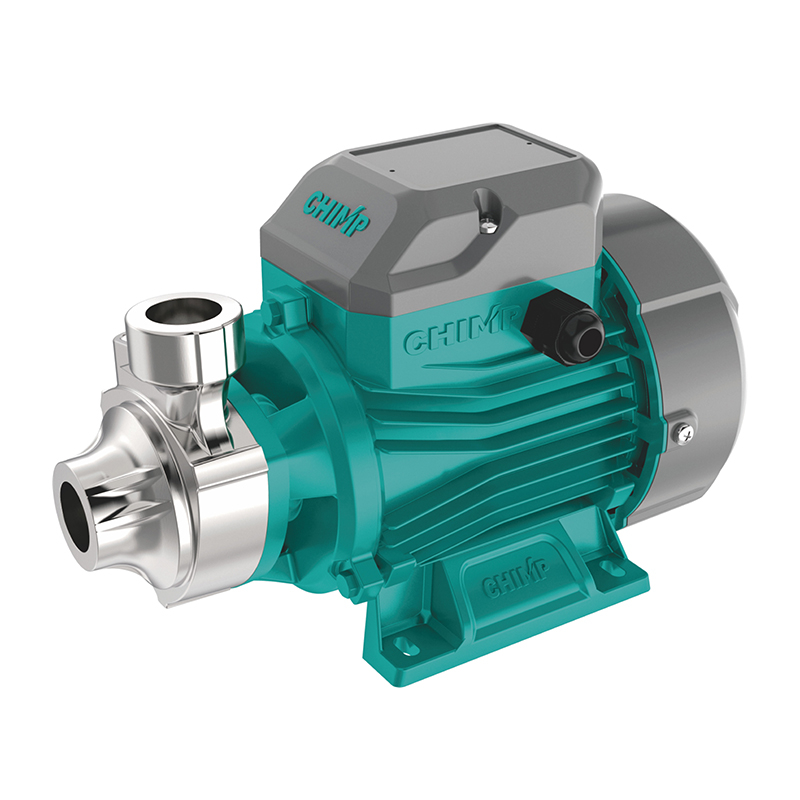

QB60 0.5hp Electric Surface Clean Water Pump Manufacturer

QB series peripheral pump can be used to transfer clean water or other liquid similar towater in physical and chemical properties. lt is suitable for smallliving water supply, automatic water sprinkler system, small airconditioner system and supporting equipment etc.

Quantity:
Availability:





Inquire

Product Description

Pump

Rust-free copper inserts prevent impeller's block when starting after the pump is unused for a long time.

Brass impeller with evenly arranged radial vanes.

Application Limits

Suction head up to 8m
Liquid temperature up to +40℃
Ambient temperature up to +40℃
Max. Working pressure: 6bar
pH: 6.5 to 8.5

Motor

Motor with copper winding
Shaft: Stainless steel welded shaft/45# steel
Insulation class: B or F
Protection class: IPX4
Cooling: External ventilation

Pump Installation And Applications

It can be used to transfer clean water or other liquid similar to water in physical and chemical properties. It is suitable for small living water supply, automatic water sprinkler system, small air conditioner system and supporting equipment etc.

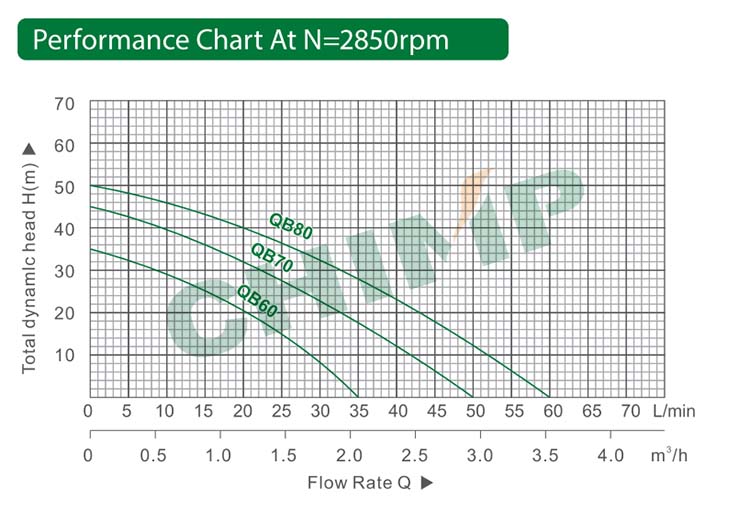

Performance Curve

QB-surface-pump-performance-curve

MODEL	POWER		MAX.FLOW (L/min)	MAX.HEAD (m)	MAX.SUCT (m)	INLET/ OUTLET (in)	GW (kg)	PACKING DIMENSION (mm)
MODEL	kW	HP	MAX.FLOW (L/min)	MAX.HEAD (m)	MAX.SUCT (m)	INLET/ OUTLET (in)	GW (kg)	PACKING DIMENSION (mm)
QB60	0.37	0.5	35	35	8	1"×1"	5.3	265×130×160
QB70	0.55	0.75	50	45	8	1"×1"	8.5	340×180×205
QB80	0.75	1	60	50	8	1"×1"	9.5	340×180×205
