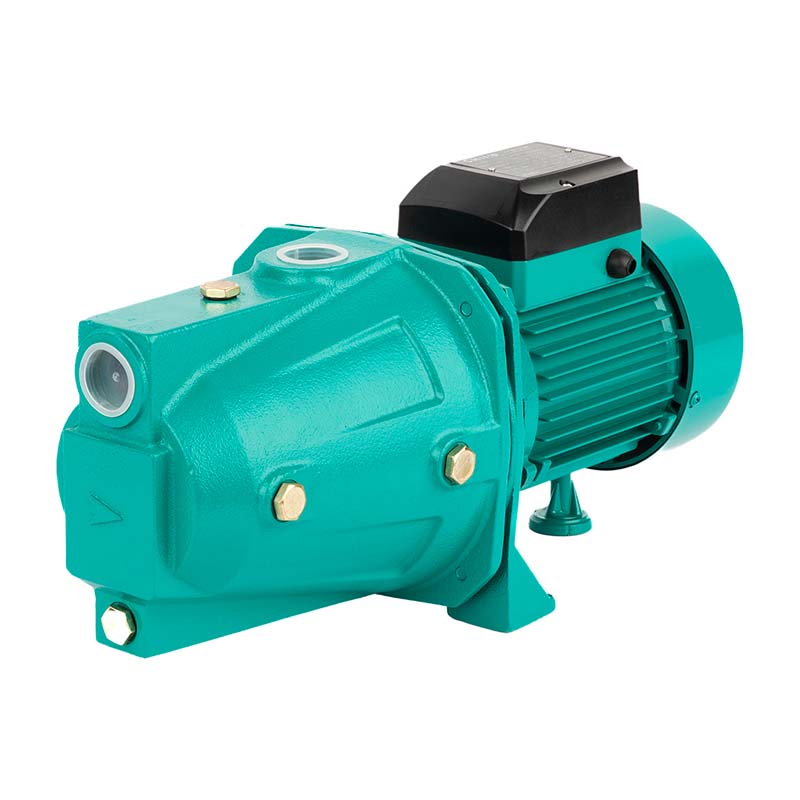

M Series Cast Iron Self-priming Jet Pump

• Stainless steel/Brass/PPO impeller


• Max.liquid temperature: +40 °C


• Max.Suction: +9m

• Cast iron pump body and support

• Motor with copper winding


• Shaft: Stainless steel welded shaft/45# steel shaft


• Insulation Class:B or F


• Protection class: IPX4


• Max.Ambient temperature: +40°C


• Cooling: External ventilation

It can be used to transfer clean water or other liquid similar to waterin physical and chemical properties. It is suitable for lifting waterfrom the well, sprinkling irrigation in garden, pressure boosting ofrunning water, and supporting equipment etc.
