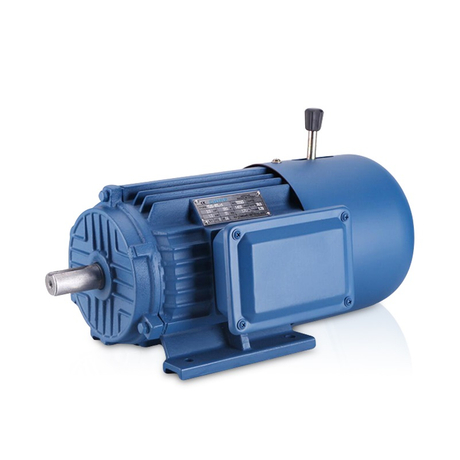

Three-phase Electromagnetic Brake Electric Motor Yej

  • YEJ

Product Description

Product features


YEJ series electromagnetic brake motor is YEJ seriesimproved products, press national JB/T6456 to requirements design and manufacture of electrical properties and Y2 series motor is basically the same. T his series motor is characterized by

non -drag on the motor shaft end fitted with electromagnetic brake when the motor is de-energized, Electromagnetic brake brake disc automatically after the motor cover lamination, friction braking torque, the motor stopped immediately, no - load braking time random frame sizes from small to large, 0. 15 0.45 S. Widely used in machine tools and transport machinery and packaging, woodworking, printing, food, chemical, textile,construction, shops, rolling door machinery.



Application


功率范围(Power Range)： 0.12-45kw

额定电压(Rated voltage)： 380V

机座中心高(Base center height)：63-255mm

额定频率(Rated frequency)： 50Hz(或60Hz)

控制器电源(Controller power) :

接线方式为 Y 时，交流220V （整流后直流99V）Wiring is Y AC220V(rectified DC99V)

接线方式为 时，交流380V （整流后直流170V）Wiring is AC380V(rectified DC170V) 防护等级(Protection class)： IP44(或IP54)

绝缘等级(Insulation class)： B级、  F级

工作制(Work system)： S1



Product Data
型号
Type		 额定功率
Power               kw
 满载时Full Load 堵转电流
额定电流
lst/ln		 堵转转矩
额定转矩
Tstart/Tn		 MAX转矩
额定转矩
Tmax/Tn		 静止动力
矩不小于
N.m		 励磁电压
UF
(v)		 惯量矩
GD⊃2;
( kg.m²)		 空载制动时
间不大于
(s)
转速
Speed
(r/min)		 电流
Current
(A)		 效率
Eff
ŋ(%)		 功率因素
Power factor
(Cos ￠)
YEJ801-2 0.75 2825 1.9 73 0.84 7.0 2.2 2.2 7.36 100 0.00428 0.20
YEJ802-2 1.1 2825 2.6 76 0.86 7.0 2.2 2.2 7.36 100 0.00496 0.20
YEJ90S-2 1.5 2840 3.4 79 0.85 7.0 2.2 2.2 14.7 100 0.0074 0.25
YEJ90L-2 2.2 2840 4.7 82 0.86 7.0 2.2 2.2 14.7 100 0.00933 0.25
YEJ100L-2 3 2880 6.4 82 0.87 7.0 2.2 2.2 29.4 100 0.01064 0.30
YEJ112M-2 4 2890 8.2 85.5 0.87 7.0 2.2 2.2 39.2 170 0.03199 0.35
YEJ132S1-s 5.5 2900 11.1 86.2 0.88 7.0 2.2 2.2 73.6 170 0.06434 0.40
YEJ132S2-s 7.5 2900 15 86.2 0.88 7.0 2.2 2.2 73.6 170 0.0724 0.40
YEJ160M1-2 11 2930 21.8 87.2 0.88 7.0 2.2 2.2 147.2 170 0.22853 0.50
YEJ160M2-2 15 2930 29.4 88.2 0.88 7.0 2.2 2.2 147.2 170 0.26623 0.50
YEJ160L-2 18.5 2930 35.5 89 0.89 7.0 2.2 2.2 147.2 170 0.316 0.50
YEJ180M-2 22 2940 42.2 89 0.89 7.0 2.2 2.2 215.8 170 0.37637 0.60
YEJ200L1-2 30 2950 56.9 90 0.89 7.0 2.2 2.2 294.3 170 0.739 0.70
YEJ200L2-2 37 2950 69.8 90.5 0.89 7.0 2.2 2.2 294.3 170 0.8181 0.70
YEJ225M-2 45 2970 83.9 91.5 0.89 7.0 2.2 2.2 441.5 170 1.269 0.80
YEJ801-4 0.55 1390 1.6 70.5 0.76 6.5 2.2 2.2 7.36 100 0.00866 0.20
YEJ802-4 0.75 1390 2.1 72.5 0.76 6.5 2.2 2.2 7.36 100 0.01073 0.20
YEJ90S-4 1.1 1400 2.7 79 0.78 6.5 2.2 2.2 14.7 100 0.01132 0.25
YEJ90L-4 1.5 1400 3.7 79 0.79 6.5 2.2 2.2 14.7 100 0.0143 0.25
YEJ100L1-4 2.2 1420 5 81 0.82 7.0 2.2 2.2 29.4 100 0.02733 0.30
YEJ100L2-4 3 1420 6.8 82.5 0.81 7.0 2.2 2.2 29.4 100 0.03506 0.30
YEJ112M-4 4 1440 8.8 84.5 0.82 7.0 2.2 2.2 39.2 170 0.04969 0.35
YEJ132S-4 5.5 1440 11.6 85.5 0.84 7.0 2.2 2.2 73.6 170 0.11584 0.40
YEJ132M-4 7.5 1440 15.4 87 0.85 7.0 2.2 2.2 73.6 170 0.15404 0.40
YEJ160M-4 11 1460 22.6 88 0.84 7.0 2.2 2.2 147.2 170 0.3986 0.50
YEJ160L-4 15 1460 30.3 88.5 0.85 7.0 2.2 2.2 147.2 170 0.68288 0.50
YEJ180M-4 18.5 1470 35.9 91 0.86 7.0 2.2 2.2 215.8 170 0.68667 0.60
YEJ180L-4 22 1470 42.5 91.5 0.86 7.0 2.2 2.2 215.8 170 0.7677 0.60
YEJ200L-4 30 1470 56.8 92.5 0.87 7.0 2.2 2.2 294.3 170 1.3963 0.70
YEJ225S-4 37 1480 69.8 91.8 0.87 7.0 2.2 2.2 414.5 170 2.158 0.80
YEJ225M-4 45 1480 84.2 92.3 0.88 7.0 2.2 2.2 441.5 170 2.463 0.80
YEJ90S-6 0.75 910 2.3 72.5 0.70 6.0 2.0 2.2 14.7 100 0.01514 0.25
YEJ901-6 1.1 910 3.2 73.5 0.72 6.0 2.0 2.0 14.7 100 0.01815 0.25
YEJ100L-6 1.5 940 4 77.5 0.74 6.0 2.0 2.0 29.4 100 0.03573 0.30
YEJ112M-6 2.2 940 5.6 80.5 0.74 6.0 2.0 2.0 39.2 170 0.07639 0.35
YEJ132S-6 3 960 7.2 83 0.76 6.5 2.0 2.0 73.6 170 0.15437 0.40
YEJ132M1-6 4 960 9.4 84 0.77 6.5 2.0 2.0 73.6 170 0.1906 0.40
YEJ132M2-6 5.5 960 12.6 85.3 0.78 6.5 2.0 2.0 73.6 170 0.2384 0.40
YEJ160M-6 7.5 970 17 86 0.78 6.5 2.0 2.0 147.2 170 0.45813 0.50
YEJ160L-6 11 970 24.6 86 0.78 6.5 2.0 2.0 147.2 170 0.59078 0.50
YEJ180L-6 15 970 31.4 89.5 0.81 6.5 1.8 2.0 215.8 170 0.9919 0.60
YEJ200L1-6 18.5 970 37.7 89.8 0.83 6.5 1.8 2.0 294.3 170 1.6609 0.70
YEJ200L2-6 22 970 44.6 90.2 0.83 6.5 1.8 2.0 294.3 170 1.838 0.70
YEJ225M-6 30 980 59.5 90.2 0.85 6.5 1.8 2.0 441.5 170 2.639 0.80
YEJ132S-8 2.2 710 5.8 81 0.71 5.5 2.0 2.0 73.6 170 0.15534 0.40
YEJ132M-8 3 710 7.7 82 0.72 5.5 2.0 2.0 73.6 170 0.19184 0.40
YEJ160M1-8 4 720 9.9 84 0.73 6.0 2.0 2.0 147.2 170 0.37563 0.50
YEJ160M2-8 5.5 720 13.3 85 0.74 6.0 2.0 2.0 147.2 170 0.4714 0.50
YEJ160L-8 7.5 720 17.3 86 0.75 5.5 2.0 2.0 147.2 170 0.60538 0.50
YEJ180L-8 10 730 17.7 86.5 0.77 6.0 1.7 2.0 215.8 170 0.9636 0.60
YEJ200L-8 15 730 34.1 88 0.76 6.0 1.8 2.0 294.3 170 1.194 0.70
YEJ225S-8 18.5 730 41.3 89.5 0.76 6.0 1.7 2.0 441.5 170 2.299 0.80
YEJ225M-8 22 730 47.6 90 0.78 6.0 1.8 2.0 441.5 170 2.436 0.80
